Antena Anti-Drone Wideband Full-Spectrum
Anti-Drone0

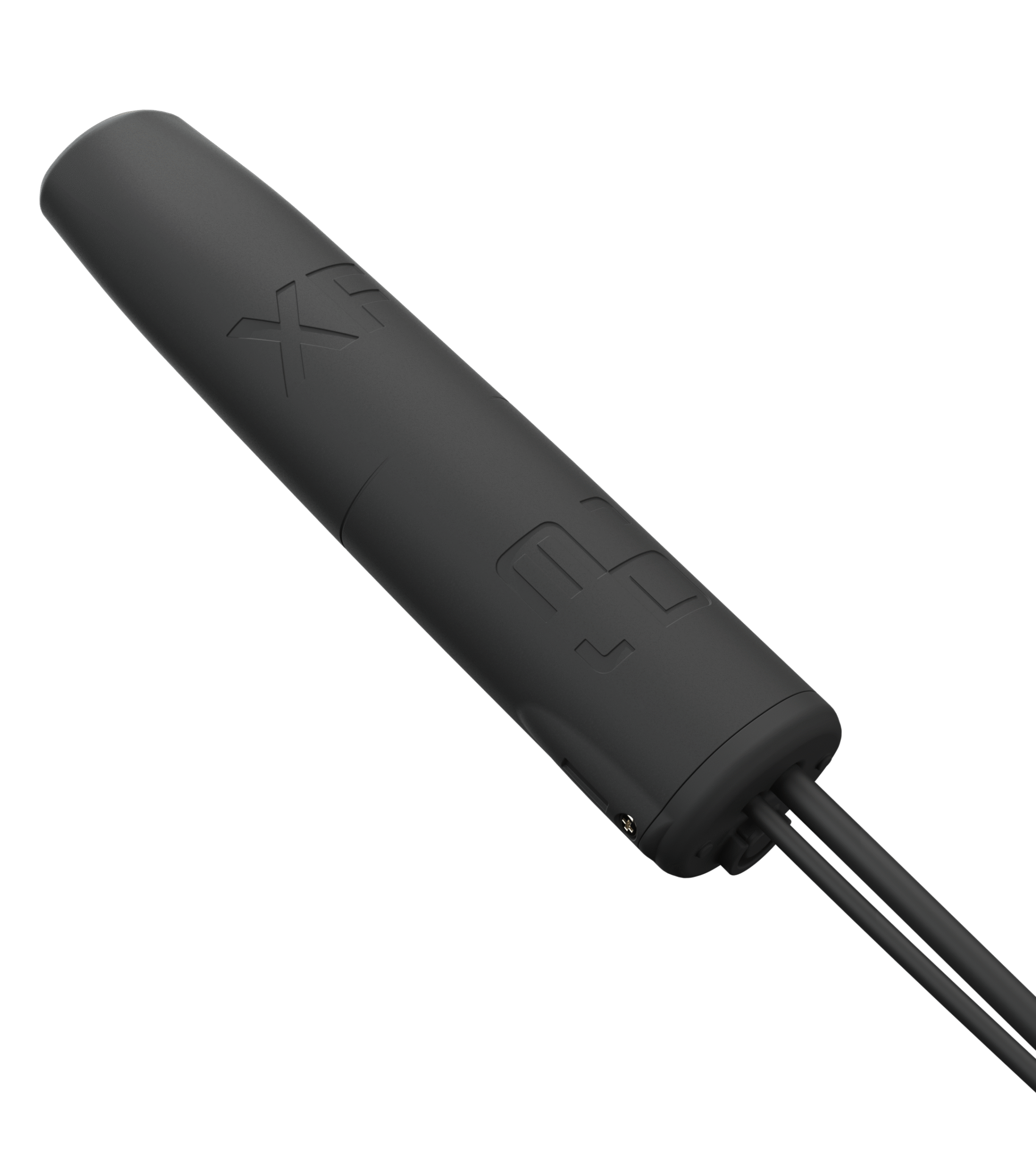

Full-Spectrum Wideband Anti-Drone Antenna

The Full-Spectrum Wideband Anti-Drone Antenna is engineered to provide continuous, uninterrupted RF awareness across the entire drone control spectrum from 200 MHz to 6 GHz in a single antenna element. Traditional multi-antenna setups require switching between bands and create coverage gaps; our wideband design eliminates these blind spots entirely. High directional gain focuses sensitivity toward the area of interest, maximising detection range while rejecting out-of-sector interference. The rugged IP67-rated housing withstands heavy rain, dust, humidity, and temperature extremes from -40°C to +70°C, making it suitable for permanent installation at airports, borders, and critical facilities. Compatible with all major passive RF detection and jamming systems via standard N-type connector.

Specifications

Gain
8 – 12 dBi (band dependent)
Mounting
Mast / Wall / Tripod / Vehicle
Connector
N-type female
IP Rating
IP67
Polarization
Dual linear (H+V)
Operating Temp
-40°C to +70°C
Frequency Range
200 MHz – 6 GHz (full spectrum)
Compatible Systems
All major RF detection & jamming platforms
